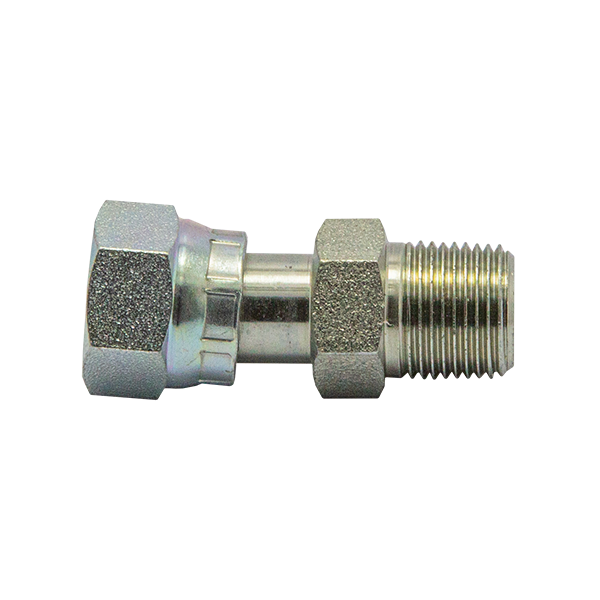

STRAIGHT M/F SWIVEL – BSPT-MALE X ORFS-FEMALE ADAPTORS
$17.16
Tank Size
Material = High quality low carbon steel precision machined and rated for high pressure hydraulic applications
Finish = Zinc plated
Fitting thread sizes and pressure ratings can be found on the charts in the pictures.
BSP Thread Size Chart
| BSPT & BSPP SIZE & PITCH |
DASH SIZE |
BSPT MALE THREAD OD |
BSPP MALE THREAD OD |
BSPT FEMALE THREAD ID |
BSPP FEMALE THREAD ID |
||||
| inch – TPI | mm | inch | mm | inch | mm | inch | mm | inch | |
| 1/8 – 28 | -02 | 9,5 | 0.37 | 9,6 | 0.38 | 8,4 | 0.33 | 8,6 | 0.34 |
| 1/4 – 19 | -04 | 12,8 | 0.50 | 13,0 | 0.51 | 11,2 | 0.44 | 11,9 | 0.47 |
| 3/8 – 19 | -06 | 16,3 | 0.64 | 16,5 | 0.65 | 14,7 | 0.59 | 15,2 | 0.60 |
| 1/2 – 14 | -08 | 20,4 | 0.80 | 20,8 | 0.82 | 18,3 | 0.72 | 19,1 | 0.75 |
| 5/8 – 14 | -10 | 22,5 | 0.89 | 22,8 | 0.90 | 20,6 | 0.81 | 20,8 | 0.82 |
| 3/4 – 14 | -12 | 25,9 | 1.02 | 26,3 | 1.04 | 23,9 | 0.94 | 24,6 | 0.97 |
| 1 – 11 | -16 | 32,6 | 1.28 | 33,1 | 1.30 | 29,7 | 1.17 | 30,7 | 1.21 |
ORFS Thread Size Chart
| MALE THREAD OD & PITCH |
DASH SIZE |
MALE THREAD OD |
FEMALE THREAD ID |
TUBE SIZE |
||
| inch – TPI | mm | inch | mm | inch | inch | |
| 9/16 – 18 UNF | -09 | 14,3 | 0.56 | 12,9 | 0.51 | 1/4 |
| 11/16 – 16 UN | -11 | 17,3 | 0.68 | 16,0 | 0.63 | 3/8 |
| 13/16 – 16 UN | -13 | 20,6 | 0.81 | 19,1 | 0.75 | 1/2 |
| 1 – 14 UNS | -16 | 25,4 | 1.00 | 23,6 | 0.73 | 5/8 |
| 1.3/16 – 12 UN | -19 | 30,0 | 1.18 | 28,2 | 1.11 | 3/4 |
| 1.7/16 – 12 UN | -23 | 36,3 | 1.43 | 34,3 | 1.35 | 1 |
| 1.11/16 – 12 UN | -27 | 42,7 | 1.68 | 40,6 | 1.60 | 1.1/4 |
| 2 – 12 UN | -32 | 51,8 | 2.00 | 48,8 | 1.92 | 1.1/2 |
If you are unsure of the exact size you require, please contact us to assist you with your selection.
WARNING – IMPROPER USE OR SELECTION OF THE PRODUCTS/EQUIPMENT OR SYSTEMS DESCRIBED CAN CAUSE PERSONAL INJURY, DEATH AND/OR PROPERTY DAMAGE. SAFETY PROCEDURES MUST BE APPLIED PRIOR TO INSTALLATION, COMMISIONING AND/OR OPERATION OF EQUIPMENT AND MACHINERY.
| Size | 1/2 * 13 / 16 BSPTM X ORFSF, 1/4 * 11 / 16 BSPTM X ORFSF, 1/4 * 9 / 16- BSPTM X ORFSF, 1/8 * 9 / 16 BSPTM X ORFSF, 3/8 * 11 / 16 BSPTM X ORFSF, 3/8 * 13 / 16 – BSPTM X ORFSF |
|---|
PDF Date Sheet
Material = High quality low carbon steel precision machined and rated for high pressure hydraulic applications
Finish = Zinc plated
Fitting thread sizes and pressure ratings can be found on the charts in the pictures.
BSP Thread Size Chart
| BSPT & BSPP SIZE & PITCH |
DASH SIZE |
BSPT MALE THREAD OD |
BSPP MALE THREAD OD |
BSPT FEMALE THREAD ID |
BSPP FEMALE THREAD ID |
||||
| inch – TPI | mm | inch | mm | inch | mm | inch | mm | inch | |
| 1/8 – 28 | -02 | 9,5 | 0.37 | 9,6 | 0.38 | 8,4 | 0.33 | 8,6 | 0.34 |
| 1/4 – 19 | -04 | 12,8 | 0.50 | 13,0 | 0.51 | 11,2 | 0.44 | 11,9 | 0.47 |
| 3/8 – 19 | -06 | 16,3 | 0.64 | 16,5 | 0.65 | 14,7 | 0.59 | 15,2 | 0.60 |
| 1/2 – 14 | -08 | 20,4 | 0.80 | 20,8 | 0.82 | 18,3 | 0.72 | 19,1 | 0.75 |
| 5/8 – 14 | -10 | 22,5 | 0.89 | 22,8 | 0.90 | 20,6 | 0.81 | 20,8 | 0.82 |
| 3/4 – 14 | -12 | 25,9 | 1.02 | 26,3 | 1.04 | 23,9 | 0.94 | 24,6 | 0.97 |
| 1 – 11 | -16 | 32,6 | 1.28 | 33,1 | 1.30 | 29,7 | 1.17 | 30,7 | 1.21 |
ORFS Thread Size Chart
| MALE THREAD OD & PITCH |
DASH SIZE |
MALE THREAD OD |
FEMALE THREAD ID |
TUBE SIZE |
||
| inch – TPI | mm | inch | mm | inch | inch | |
| 9/16 – 18 UNF | -09 | 14,3 | 0.56 | 12,9 | 0.51 | 1/4 |
| 11/16 – 16 UN | -11 | 17,3 | 0.68 | 16,0 | 0.63 | 3/8 |
| 13/16 – 16 UN | -13 | 20,6 | 0.81 | 19,1 | 0.75 | 1/2 |
| 1 – 14 UNS | -16 | 25,4 | 1.00 | 23,6 | 0.73 | 5/8 |
| 1.3/16 – 12 UN | -19 | 30,0 | 1.18 | 28,2 | 1.11 | 3/4 |
| 1.7/16 – 12 UN | -23 | 36,3 | 1.43 | 34,3 | 1.35 | 1 |
| 1.11/16 – 12 UN | -27 | 42,7 | 1.68 | 40,6 | 1.60 | 1.1/4 |
| 2 – 12 UN | -32 | 51,8 | 2.00 | 48,8 | 1.92 | 1.1/2 |
If you are unsure of the exact size you require, please contact us to assist you with your selection.
WARNING – IMPROPER USE OR SELECTION OF THE PRODUCTS/EQUIPMENT OR SYSTEMS DESCRIBED CAN CAUSE PERSONAL INJURY, DEATH AND/OR PROPERTY DAMAGE. SAFETY PROCEDURES MUST BE APPLIED PRIOR TO INSTALLATION, COMMISIONING AND/OR OPERATION OF EQUIPMENT AND MACHINERY.
| Size | 1/2 * 13 / 16 BSPTM X ORFSF, 1/4 * 11 / 16 BSPTM X ORFSF, 1/4 * 9 / 16- BSPTM X ORFSF, 1/8 * 9 / 16 BSPTM X ORFSF, 3/8 * 11 / 16 BSPTM X ORFSF, 3/8 * 13 / 16 – BSPTM X ORFSF |
|---|
